Solar PV Combiner Box, 4 String with 10A Rated Current Fuse, 63A Circuit Breaker, a High-Voltage Lightning Arrester, 2 Surge Protection Devices, IP65 Waterproof

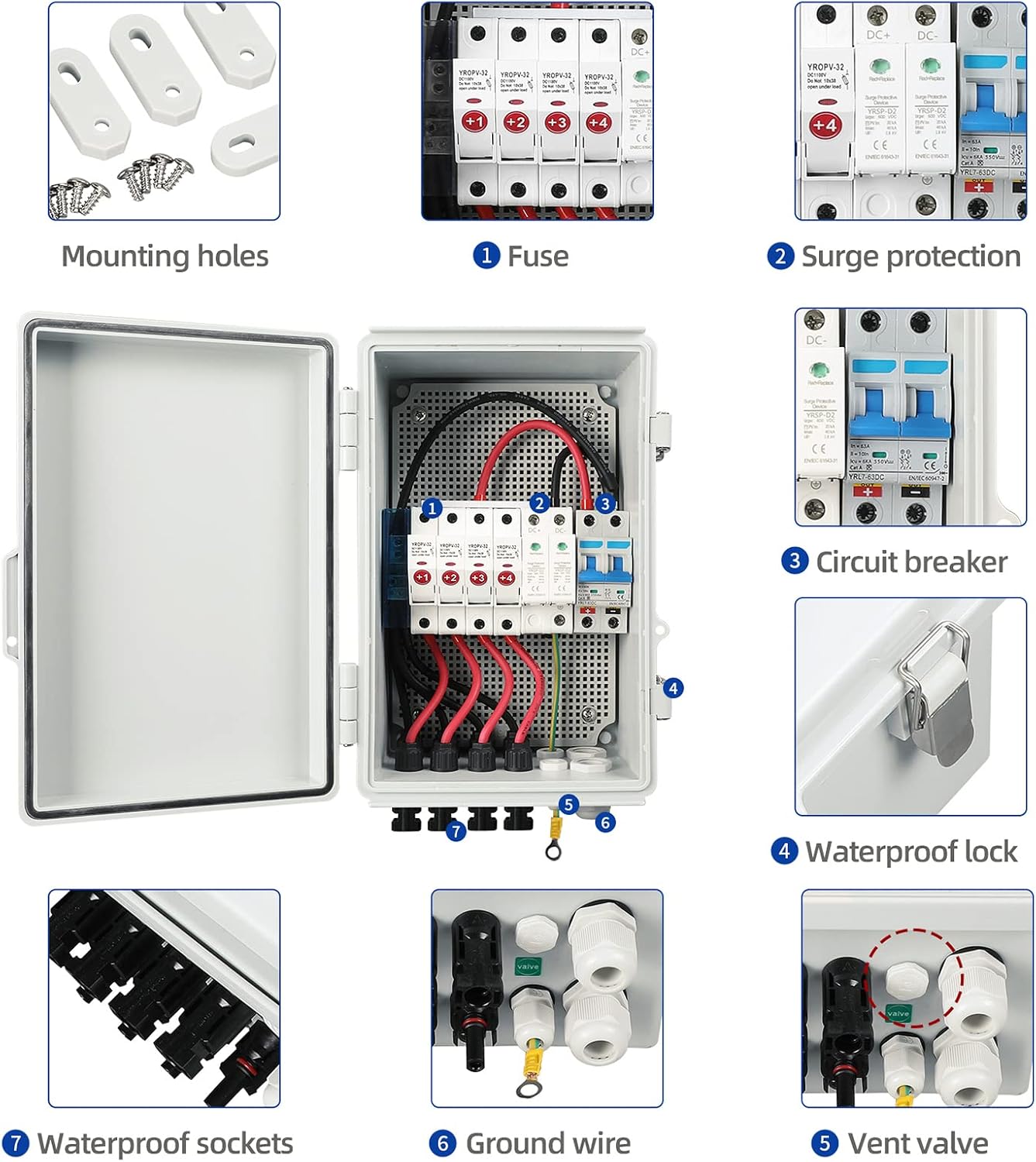

DescriptionThe PV combiner box is made of high-quality ABS and PC, so it is strong and durable. It can make the photovoltaic system at its best and increase output power. It features 4 strings with 10A rated current fuse, a high-voltage lightning arrester, 2 surge protection devices, and a 550V 63A circuit breaker, so it is safe to use and will be your ideal choice.SpecificationColor: WhiteMaterial: ABS, PCStyle: ModernCircuit Breaker Type: StandardMounting Type: Wall MountOperating Temperature: -30~70℃/-22~158℉Input: 4 StringsOutput: 1 StringNumber Of Poles: 4Current Rating: 63ANumber Of Max. Connection PV Array: 4Max. Input Current of Single PV Array: 10ATotal Input Current of PV Array: 40AMax Input Voltage of Single PV Array: 1000VMax Output Voltage: 600VProtection Grade: IP65Relative Humidity: 0-95%, No CondensationCooling Method: Natural CoolingNumber of Surge Protection Devices: 2Surge Protection Device: 40KA, 600VNumber of Circuit Breakers: 1Circuit Breaker: 63A, 550VProduct Size: 21*14.5*33cm/8.26*5.7*13inchPackage Size: 20*23*12cm/7.87*9.05*4.72inchNet Weight: 2.8kg/6.17 lbsGross Weight: 3kg/6.6 lbsPackage Included1* PV Combiner Box1* Combination Lock4* Mounting PlatesOther Accessories for Assembly

• ⭐【Selected Materials】: Made of high-quality ABS and PC material, it can resist impact, corrosion, wear, and break and has good insulation, keeping your equipment well protected in harsh environments and ensuring extended durability.
• ⭐【Professional and Powerful】: PV combiner box tidied up connection and confluence of photovoltaic modules. It is used to reduce the connection of the photovoltaic array to the inverter, optimize the system structure, make it easy to cut off the circuit in maintenance and reduce the scope of the power outage when the photovoltaic system fails. It will make the photovoltaic system at its best and increase output power.
• ⭐【High Safety】: It adopts 4 strings with 10A rated current fuse, 2 surge protection devices, and a 550V 63A circuit breaker, and has short circuit/lightning surge/over-voltage/over-current protection/grounding protection to avoid damage to the photovoltaic panels and inverters when a fault occurs.
• ⭐【Considerate Design】: The LED indicator on the fuse holder will timely display the status of the fuse to facilitate timely replacement.
• ⭐【Waterproof and Dustproof】: Its IP65 protection grade with waterproof and dustproof features allows it to be used in harsh environments without frequent replacement.

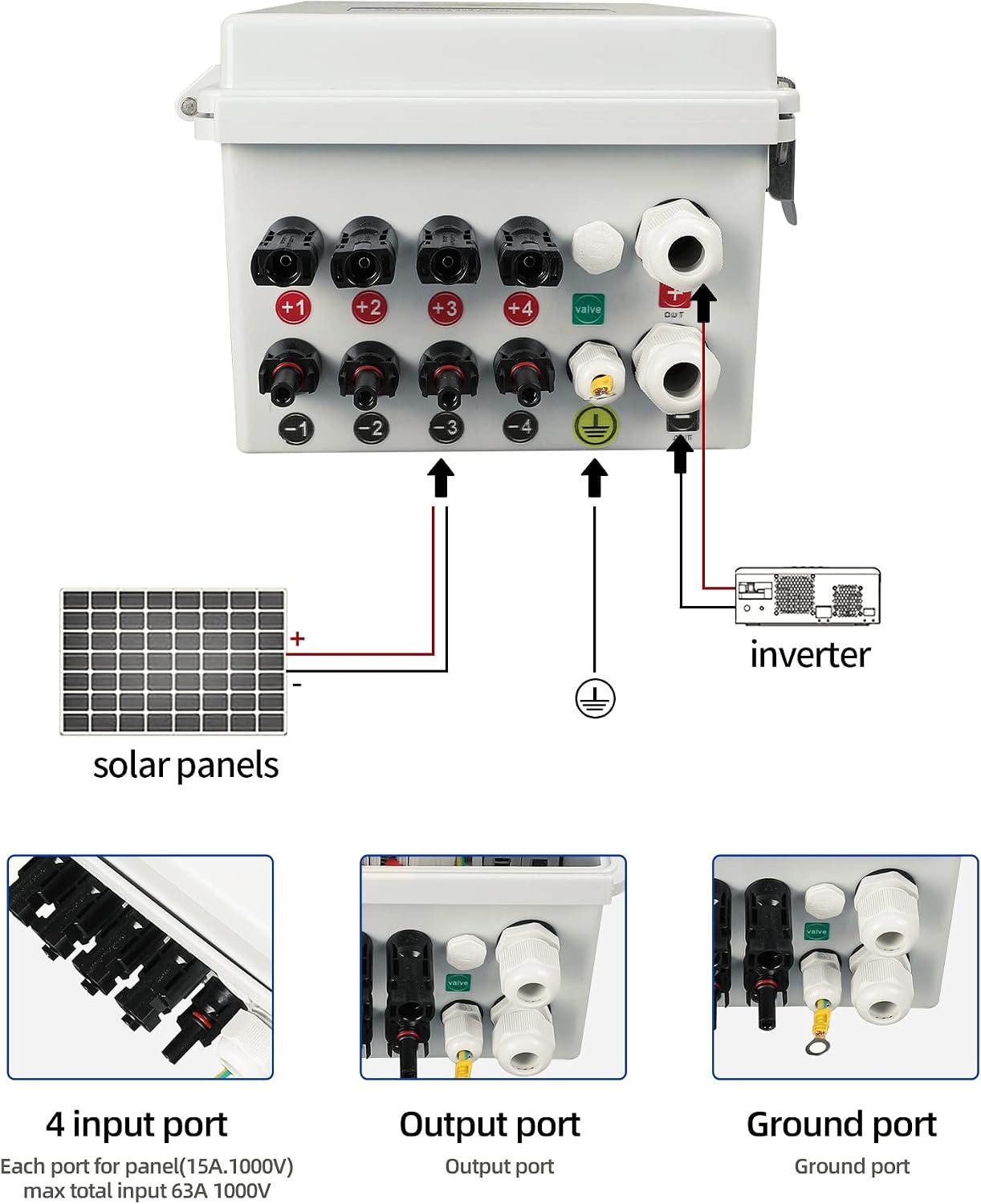

• ⭐【Easy Installation & Wiring】: A plug-and-play and pre-connected cable offers an easy solution for solar panel connection, saving at least 1-2 hours of wiring by hand. With 4 mounting plates, it can be mounted on any regular surface. And the built-in ground wire connector makes ground wire installation available.
• ⭐【Wide Compatibility】: It is compatible with any brand of solar panels with solar connectors, which can meet your use needs.
• ⭐【Guaranteed Customer Service】: We aim to provide quality products and services. If you have problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.
